0.2–0.8T Movable Garbage Davit | Ship Deck Cargo Hold Lifting Equipment
Product Overview
Movable garbage davit is a lightweight lifting equipment designed for handling residues, garbage, and small cargo inside ship cargo holds and confined spaces.
It features compact structure, manual or electric operation, and 360° slewing capability, providing flexible and safe lifting solutions.
It is widely used on bulk carriers, cargo ships, and offshore vessels for maintenance and cleaning operations.
Quick Specifications
- Safe Working Load: 0.2–0.8 Ton → Defines lifting capacity for garbage and small cargo
- Working Radius: 2–3 m → Determines coverage area inside cargo hold
- Davit Height: 2.8 m → Defines installation height and lifting geometry
- Hoisting Height: 10–20 m → Determines vertical lifting range
- Slewing Range: 0–360° → Provides flexible operation in confined space
- Power Type: Manual / Electric / Pneumatic → Defines operation method
- Working Temperature: -40°C to +50°C → Suitable for harsh marine environment
- Surface Treatment: Sa2.5 + Epoxy Coating → Ensures corrosion resistance
Main Technical Parameters
| SWL (T) |
Working Radius (m) |
Height (m) |
Hoisting Height (m) |
Power (kW) |
| 0.2 |
2–3 |
2.8 |
10–20 |
0.8 |
| 0.3 |
2–3 |
2.8 |
10–20 |
0.8 |
| 0.5 |
2–3 |
2.8 |
10–20 |
1.5 |
| 0.8 |
2–3 |
2.8 |
10–20 |
1.5 |
Selection Guide
Step 1 – Select SWL → Determines lifting capacity
Step 2 – Confirm Working Radius → Determines operation coverage
Step 3 – Confirm Hoisting Height → Determines lifting range
Step 4 – Select Power Type → Manual, electric or pneumatic
Step 5 – Confirm Installation Requirement → Movable or fixed base
Structure & Components
Main column | Jib arm | Winch system | Slewing mechanism | Base frame | Control system
Custom Attributes
- SWL: 0.2–0.8 Ton → Defines lifting capacity
- Working Radius: 2–3 m → Determines operation range
- Hoisting Height: 10–20 m → Determines lifting range
- Power Type: Manual / Electric / Pneumatic → Defines operation method
- Slewing: 0–360° → Provides flexibility
- Mounting Type: Movable → Allows flexible positioning
- Material: Carbon Steel → Ensures durability
- Certification: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS → Meets marine standards
Custom Configuration & Inquiry Guide
Please provide SWL, working radius, hoisting height, power type, and installation requirements.
We will provide model selection, drawings, and quotation.
How It Works
The davit lifts cargo through a winch system mounted on the jib arm. Slewing mechanism allows rotation for positioning, while manual or powered system controls lifting and lowering.
Applications
Cargo hold garbage handling | Ship maintenance | Confined space lifting | Bulk carriers | Offshore vessels
Certifications & Advantages
Certifications: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS
Lightweight design, movable structure, flexible operation, easy maintenance, cost-effective solution.
Drawing & Photos

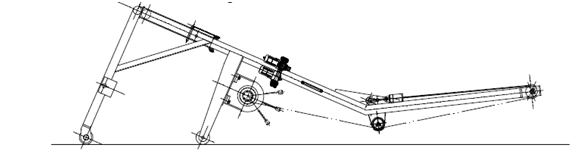

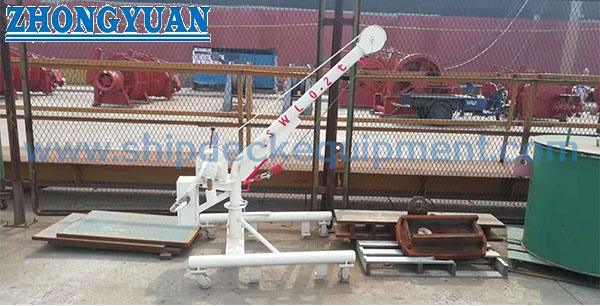

General arrangement drawing | Product photos | Installation layout
Ordering Information
MOQ: 1 Unit | Delivery Time: As per project | Payment: T/T, L/C | Customization: Available
FAQ
Q1: Is manual operation sufficient?
A: Yes for light loads, electric is recommended for higher efficiency.
Q2: Can it be moved between locations?
A: Yes, movable base allows flexible use.
